ASP.NET Web API with C# - Implementing GET method and accessing in C#,JQuery

Hello.. !!

We have seen how to create a ASP.NET Web API  project  and accessing it through localhost.
Now we will implement CRUD(Create, Read,Update, Delete) operations for the project we have seen earlier

Here is the project description

"Build a Web API project for a Super Market/ Mart where there is a huge DB warehouse of Products which are belongs to different categories and with prices. These products are associated with Sellers data. This DB warehouse also contains all Orders data associated with Customer details"

What we do in this article

• Adding a Model
• Implement GET operation
• Access it from C# and Javascript

Download Web API solution
Download Web API Sample Code Files

First we need to create a Web API project. You can easily follow this link to know how to create it. After having all these set, we can move further

Adding a Model

Right Click on the Model folder -> Add -> New Item -> Class

Give it a name and click Add

New file which is having cs extension will be added with the given name. This is called Model in MVC Framework. This holds properties of the Entity we have defined

For example, Product is a class name. Product will have features/properties like

Name - string- Name of the product

Category - string - Category it belongs to. Health, Electronics etc

Price - decimal - MRP  of the price

ProductID - int- Id which uniquely identifies that product

ProductCode- string -  Which was given by the manufacturer or by the seller

I have added below 4 models to the project

public class Product

    {

        public string Name { get ; set ; }

        public int ProductID { get; set; }

        public string ProductCode { get; set; }

        public int TotalQuantity { get; set; }

        public int AvailableQuantity { get; set; }

        public string ProductCategory{ get; set; }

        public decimal Price { get; set; }

        public int SellerID { get; set; }

    }

Implement GET operation

Now let's add API Methods to get some data by adding a new API Controller

Right click Controllers -> Add -> Controller -> Web API 2 Controller

Give it a name(in my case ProductController), controller word in the name will be added automatically by framework. click add

Now,  a controller class will be added in the folder, if we observe the class, it is implementing ApiController  instead of  Controller  which means added is a Web API Controller

Add below in the ProductController

public static List<Product> products = new List<Product>();

public void SetProductDetails()
        {
            products.Add(new Product()
            {
                Name = "AXE Refresh Deo",
                AvailableQuantity = 10,
                Price = 190,
                ProductCategory = "Deo&Perfumes",
                ProductCode = "AXERDM12",
                ProductID = 1,
                SellerID = 1,
                TotalQuantity = 15
            });

            products.Add(new Product()
            {
                Name = "Killer Jeans",
                AvailableQuantity = 25,
                Price = 3499,
                ProductCategory = "MensWear",
                ProductCode = "KillerXJ900",
                ProductID = 2,
                SellerID = 1,
                TotalQuantity = 53
            });

            products.Add(new Product()
            {
                Name = "Rebook Shoes",
                AvailableQuantity = 23,
                Price = 3250,
                ProductCategory = "Shoes",
                ProductCode = "RBKM093",
                ProductID = 3,
                SellerID = 1,
                TotalQuantity = 42
            });
        }

public IEnumerable<Product> GetAllProducts()

        {

            if (products.Count == 0)

                SetProductDetails();

            return products;

        }

public Product GetProductDetail(int productID)

        {

            if (products.Count == 0)

                SetProductDetails();

            return products.Where(x => x.ProductID == productID).FirstOrDefault();

        }

Note: Here we are preparing products list manually in SetProductDetails(). Generally these details will be pulled from database server

Build the solution and browse the Web API project it in debug mode

Note: Port number may be different in your case because it is dynamic

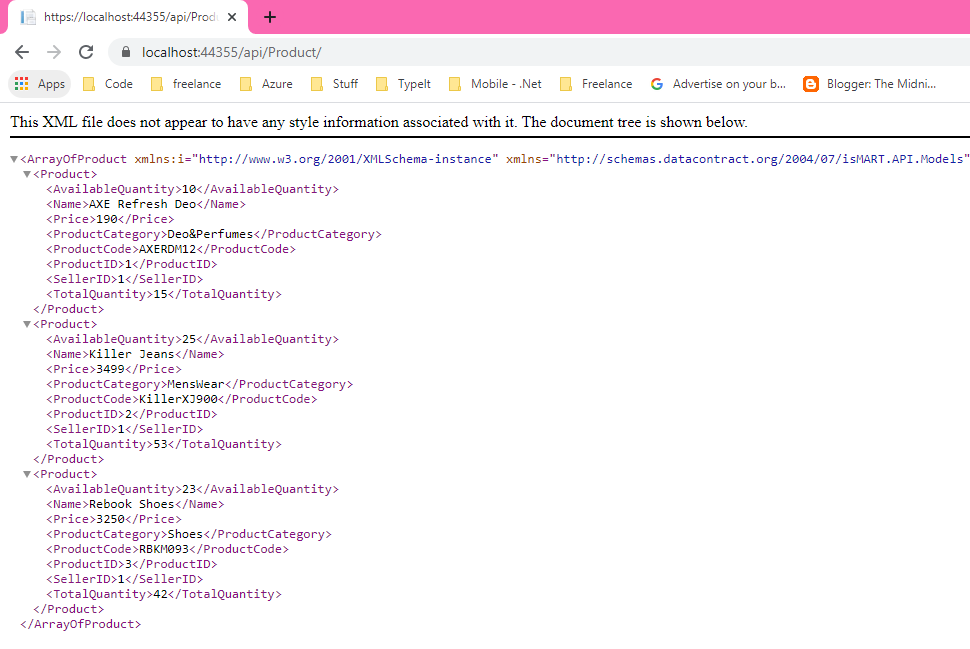

browse https://localhost:44355/api/Product/GetAllProducts or https://localhost:44355/api/Product/

will get below result

Above method is returning all the product details

Browse https://localhost:44355/api/Product/GetProductDetail?productID=1

Accessing API methods from C#

We have implemented Web API methods and tested it only using XML string in browser
Let's use these methods by accessing it from C# code. We have a MVC web page which is rendering while running the solution in debug mode. So, we will add our testing methods in the same Controller and Views

Add below method in HomeController.cs

public async Task<ActionResult> GetProductsFromAPI(int productID=0)
{

            HttpClient client = new HttpClient();

            client.BaseAddress = new Uri("https://localhost:44355/");

            client.DefaultRequestHeaders.Accept.Clear();

            client.DefaultRequestHeaders.Accept.Add(

                new MediaTypeWithQualityHeaderValue("application/json"));

            Product product = null;

            List<Product> products = new List<Product>();

            if (productID > 0)

            {

                HttpResponseMessage response = await client.GetAsync("api/Product/GetProductDetail?productID=1");

                if (response.IsSuccessStatusCode)

                {

                    product = await response.Content.ReadAsAsync<Product>();

                    products.Add(product);

                }

                //return Json(product, JsonRequestBehavior

                //    .AllowGet);

            }

            else

            {

                HttpResponseMessage response = await client.GetAsync("api/Product/GetAllProducts");

                if (response.IsSuccessStatusCode)

                {

                    products = await response.Content.ReadAsAsync<List<Product>>();

                }

                //return Json(product, JsonRequestBehavior

                //    .AllowGet);

            }

            return View(products);

        }

Add below code in GetProductsFromAPI.cshtml in Views/Home
 You can simple Right click on the GetProductsFromAPI()  method in HomeController   and select Add View  and replace below code over there

@model IEnumerable<isMART.API.Models.Product>

@{
    Layout = null;
}

<!DOCTYPE html>

<html>
<head>
    <meta name="viewport" content="width=device-width" />
    <title>GetProductsFromAPI</title>
</head>
<body>
    <p>
        @Html.ActionLink("Create New", "Create")
    </p>
    <table class="table" cellpadding="10" cellspacing="10" border="1">
        <tr>
            <th>
                @Html.DisplayNameFor(model => model.Name)
            </th>
            <th>
                @Html.DisplayNameFor(model => model.ProductCode)
            </th>
            <th>
                @Html.DisplayNameFor(model => model.TotalQuantity)
            </th>
            <th>
                @Html.DisplayNameFor(model => model.AvailableQuantity)
            </th>
            <th>
                @Html.DisplayNameFor(model => model.ProductCategory)
            </th>
            <th>
                @Html.DisplayNameFor(model => model.Price)
            </th>
            <th>
                @Html.DisplayNameFor(model => model.SellerID)
            </th>
            <th></th>
        </tr>

    @foreach (var item in Model) {
        <tr>
            <td>
                @Html.DisplayFor(modelItem => item.Name)
            </td>
            <td>
                @Html.DisplayFor(modelItem => item.ProductCode)
            </td>
            <td>
                @Html.DisplayFor(modelItem => item.TotalQuantity)
            </td>
            <td>
                @Html.DisplayFor(modelItem => item.AvailableQuantity)
            </td>
            <td>
                @Html.DisplayFor(modelItem => item.ProductCategory)
            </td>
            <td>
                @Html.DisplayFor(modelItem => item.Price)
            </td>
            <td>
                @Html.DisplayFor(modelItem => item.SellerID)
            </td>
            <td>
                @Html.ActionLink("Edit", "Edit", new { id=item.ProductID }) |
                @Html.ActionLink("Details", "Details", new { id=item.ProductID }) |
                @Html.ActionLink("Delete", "Delete", new { id=item.ProductID })
            </td>
        </tr>
    }

    </table>
</body>

</html>

Now run the application in debug mode
Browse https://localhost:44355/home/GetProductsFromAPI

Browse https://localhost:44355/home/GetProductsFromAPI?productID=2

Accessing API methods from JQuery

We need to use JQuery and access Web API through AJAX call

Right click Scripts -> Add -> JavaScript File

Give it a name(Product) and add below function in the file

function GetAllProducts(productID) {
    var completeUrl = "https://localhost:44355/api/Product/GetAllProducts";
    if (productID)
        completeUrl = "https://localhost:44355/api/Product/GetProductDetail?productID=" + productID
    $.ajax({
        type: "get",
        url: completeUrl,
        dataType: "json",
        contentType: "application/json;",
        success: function (response) {
            console.log(response);
        }
    });

}

Now, in Views/Shared/_Layout.cshtml

1. add <script src="~/Scripts/Products.js"></script>  in head tag
2. Add two list items along with Home, API in <div class="navbar-collapse collapse">

<li><a href="#" onclick="GetAllProducts()">Get Products</a></li>

<li><a href="#" onclick="GetAllProducts(1)">Get First Product</a></li>

Run the application in debug mode and click  F12 or Right click on browser -> inspect element

Now click Get Products on the screen and observe the below in console tab

Now click Get First Product on the screen and observe the below in console tab

After a long long scroll we've came to an end of this article. Hope you've got a clear picture of Web API method creation and accessing it from C# and JQuery. We can access API methods from any language/platform. This is the beauty of Web APIs.

Download Web API solution
Download Web API Sample Code Files

If you have any doubts, post them in the comment section below

Thanks..!!!!
